Wound Imaging System

problem

process

solution

To develop a system to photograph, measure and store wound images of patients

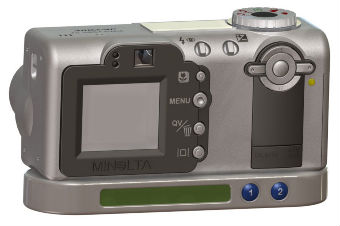

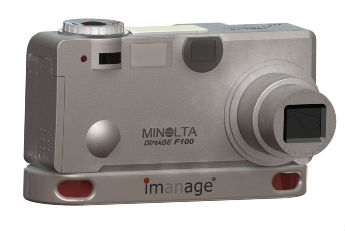

Worked with client to help develop laser registration system to attach to almost any standard digital camera. Developed sketches and final solidworks model and rendered concept.

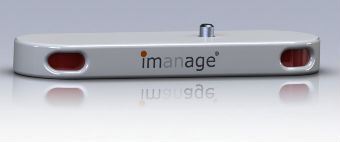

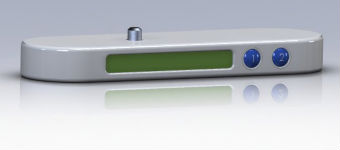

Concept includes two laser grid projection systems that create parallax affected overlap grid to allow for proper focal length and ultimately measurement of wound progression over time.
